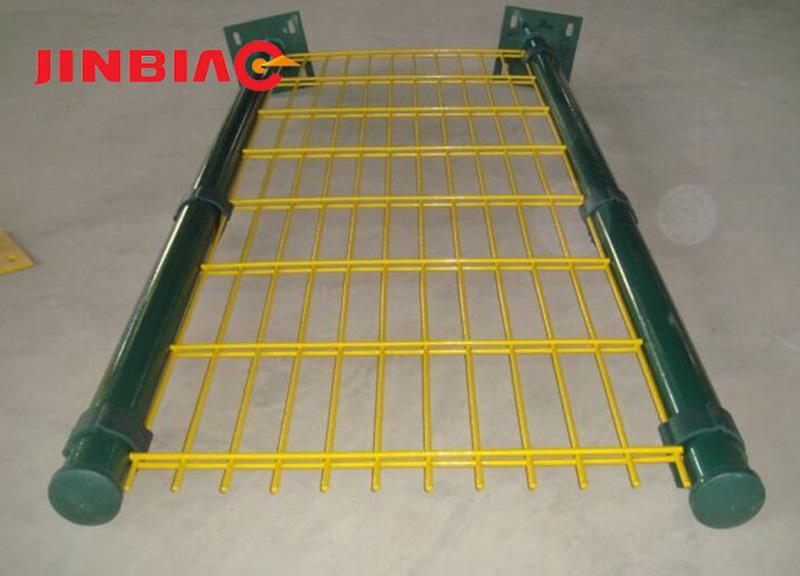

Material:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

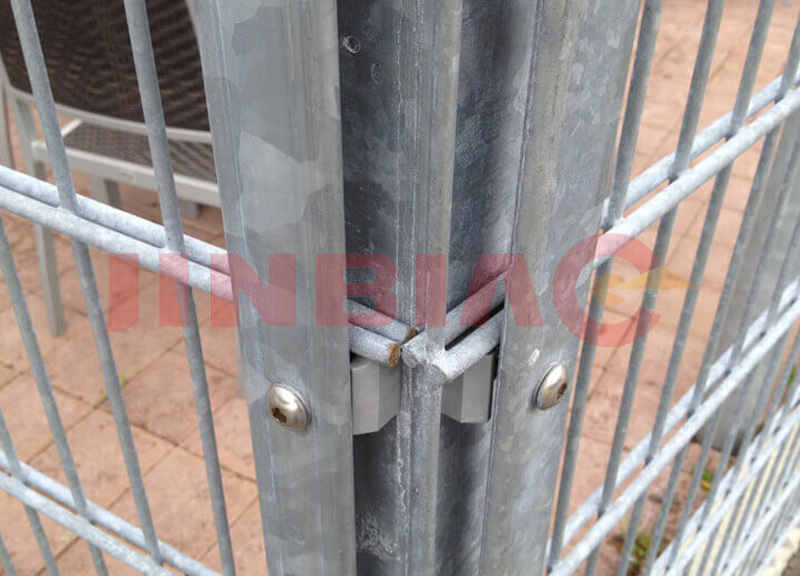

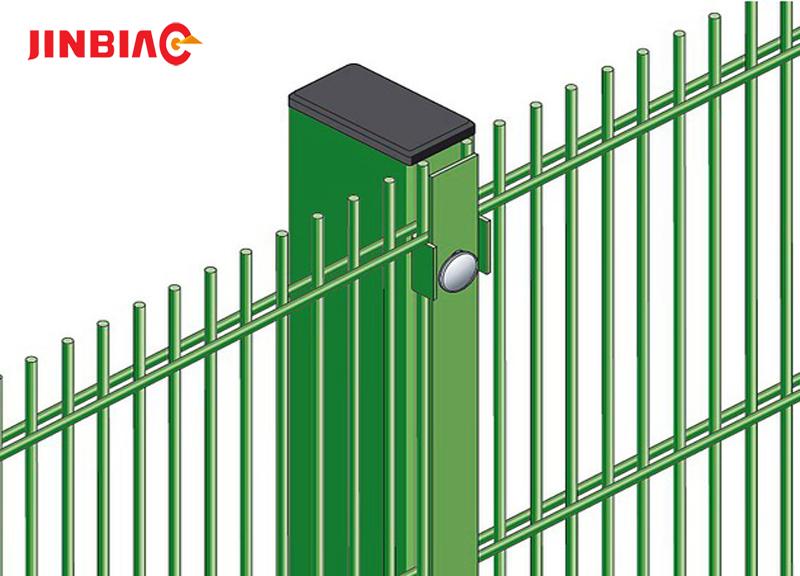

Post:
This System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.
Specification
| Double Wire Fence | |||||
| HeightxWidthPanel(mm) | Mesh Size (mm) | Wire Diameter | Post Height (mm) | ||
| Wire Dia (mm) | Wire Dia (mm) | Wire Dia(mm) | |||
| 630X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1100 |
| 830X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1300 |
| 1030X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1500 |
| 1230X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1700 |
| 1430X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1900 |
| 1630X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2100 |
| 1830X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2400 |
| 2030X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2600 |
| 2230X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2800 |
| 2430X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 3000 |
