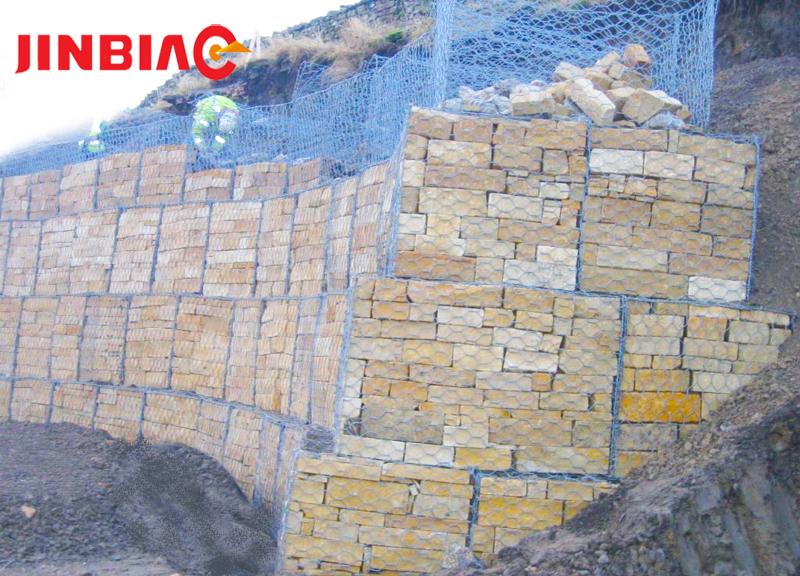

Woven Gabion
Woven Gabion
Specification:
Materials: high quality low carbon steel wire,PVC wire.

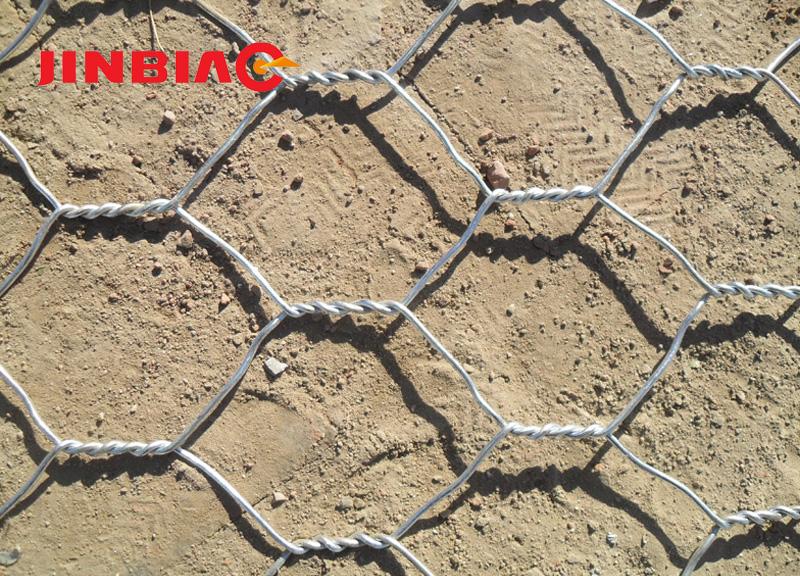

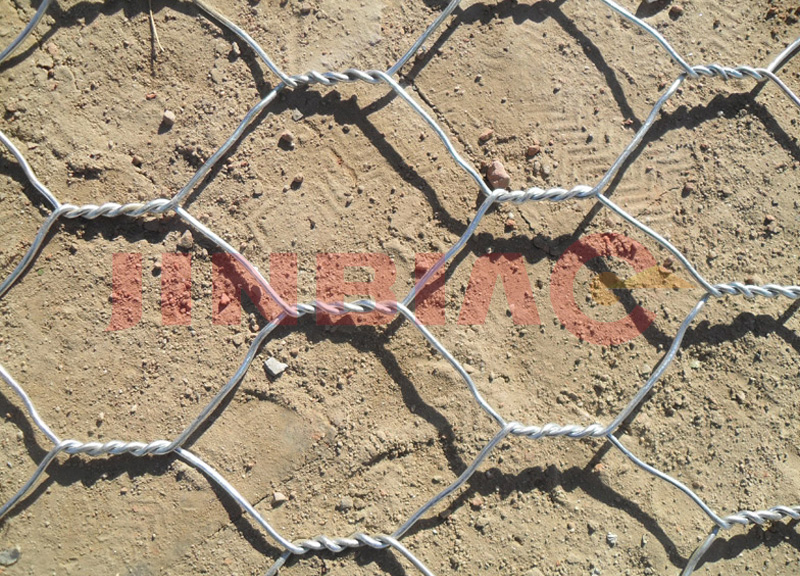

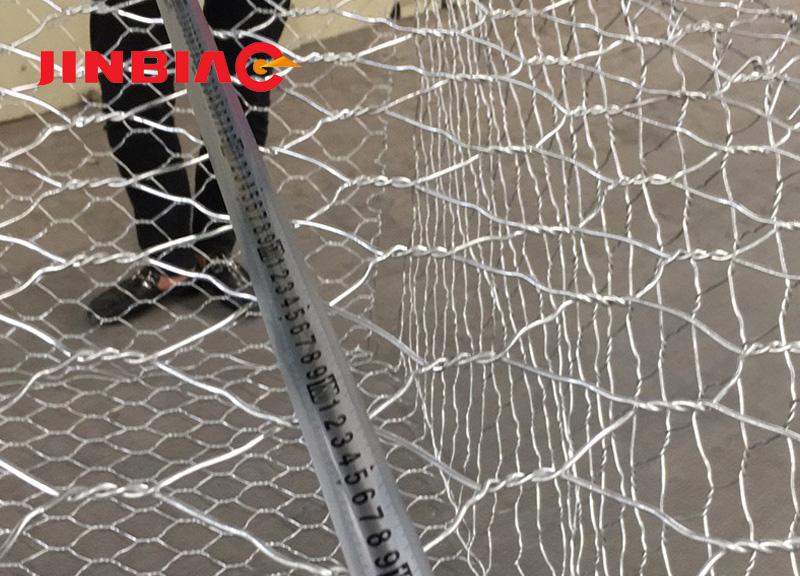

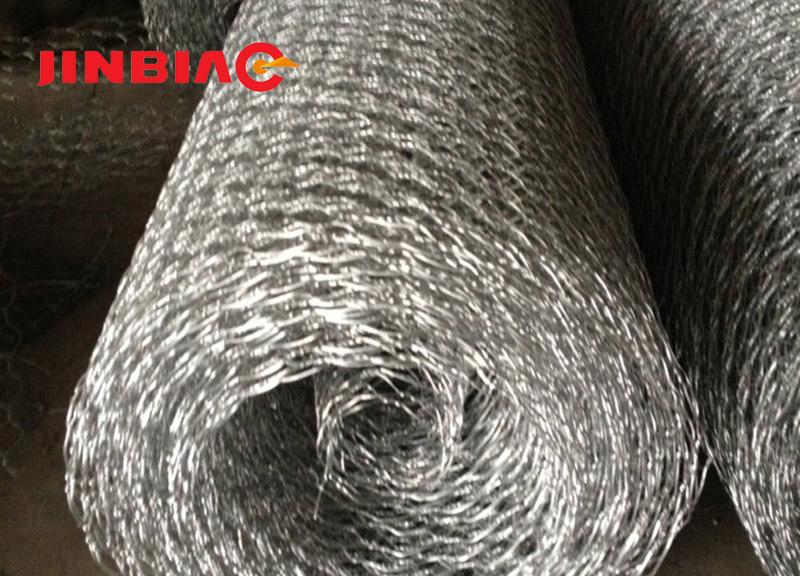

Galvanized hexagonal wire netting use of low carbon steel wire weave, the steel wire of tensile strength of not less than 20kg/m2, steel wire diameter can reach 0.3mm-2.0mm.
The surface treatment we can choose of electric galvanizing and hot-dip zinc plating to protect, the thickness of galvanized protect we can make it as clients requires.
The Zinc-coating we can maked to 300g/ m²
| Specification of hexagonal wire netting | ||
| Mesh | Wire Dia | Assortments available:Hot dipped galvanized after weaving;Hot dipped galvanized before weaving;Electro galvanized after weaving;Electro galvanized before weaving;Hexagonal wire netting, PVC-coatedHexagonal wire netting in normal twist.Hexagonal wire netting in reverse twist. |
| 1/2” | SWG22,23,24,25 | |
| 5/8” | SWG22,23,24,25 | |
| 3/4” | SWG21,22,23,24 | |
| 1” | SWG20,21,22,23,24 | |
| 1-1/4” | SWG19,20,21,22,23,24 | |
| 1-1/2” | SWG18,19,20,21,22 | |
| 2” | SWG18,19,20,21,22 | |
| 3” | SWG18,19,20 | |
